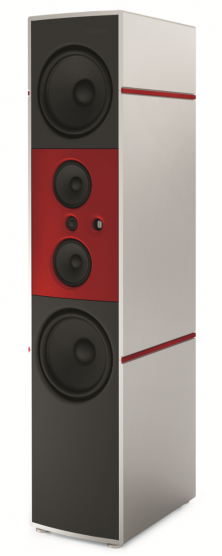

STEINHEIM WILL TAKE THE WORLD OF PASSIONATE AUDIOPHILES BY STORM, WITH ITS NEW STATE-OF-THE ART SPEAKER

This speaker was created in pure and well-studied lines to create not only a superb look, but unparalleled sound rendition, based on the concept behind the already well-reputed Alumine. It will enthrall future owners with its exceptional musicality, its three-dimensional space, and vibrantly alive, natural soundstage.

Then there’s its flawless rendering of any genre of music, along with impressive sound levels from the deepest bass to the highest notes. The Reference is also distinct in its exceptional ease-of-use, thanks to remote operation of the MTM couple (medium tweeter) diffusion angle.

It also adapts to all amplification systems and rooms, thanks to a medium-bass frequency filter included in a separate housing unit that inserts between the pre-amps and the amps (minimum 2, and up to 6 amps per speaker).

TECHNICAL SPECIFICATIONS

• Reference loudspeakers with 8 transducers in full d’Appolito configuration

• 4 x 32 cm high excursion woofers, 2 x 17 cm neodimium medium, 1 x neodimium tweeter, 1 x Ribbon super tweeter

• Massive aluminium cabinet with 6 independent closed chambers (no ports)

• Motorized angle deviation of the MTM section

• Passive 4 ways, with analogue filter for the bass section (module inserted between preamp and power amp)

• Connection with 2 stereo or 4 mono separate amplifiers

• Frequency response : 15Hz to 100Khz

• Power handling : Bass section: 1400 W RMS - Medium-tweeter section: 250 W RMS

• Sensitivity : min 96dB SPL/2.83V/1m

• Max SPL : 120 dB

• Dim : H 1670mm x W 370mm x D 560 mm

• Weight : approx. 240kg each

• Stereo active analogue 2 ways crossover and 3 ways passive corssover

• Full warranty: 10 years

Reference Ultime (Reference speaker, 2x8 drivers, without low crossover, Light or dark Shiny grey structured coating side panels.  Black front and rear panels.  Anodized red MTM and side lines)  $188,500 CHF

Options:  Active Crossover (pure analogue stereo active crossover with ultimate components - CH Precision chassis)  $37,900 CHF

Options:  Passive Crossover (External Passive Crossover with ultimate components, 2 boxes, 1 per channel)  $31,500 CHF
